The S2 100-2600 Hydraulic CNC Press Brake represents a heavy-duty bending solution engineered specifically for high-precision thin sheet processing in modern manufacturing facilities. Delivering a powerful 1000kN nominal force alongside a generous 2600mm bending length, this equipment handles medium to large workpieces—ranging from architectural sheet metal panels to complex structural components—with exceptional stability. The machine features a closed-frame structure that virtually eliminates operational vibration, allowing operators to feel the solid, grounded nature of the heavy steel chassis. By integrating an advanced hydraulic system and intelligent CNC control, it guarantees consistent bending accuracy, which is highly critical for demanding industries like automotive assembly or construction machinery production. Weighing a substantial 7100kg, the S2 100-2600 balances immense physical durability with a space-optimized design (3765×1690×2700mm). This thoughtful footprint allows the equipment to fit perfectly into most workshop layouts without wasting valuable floor space, providing a highly efficient workstation.

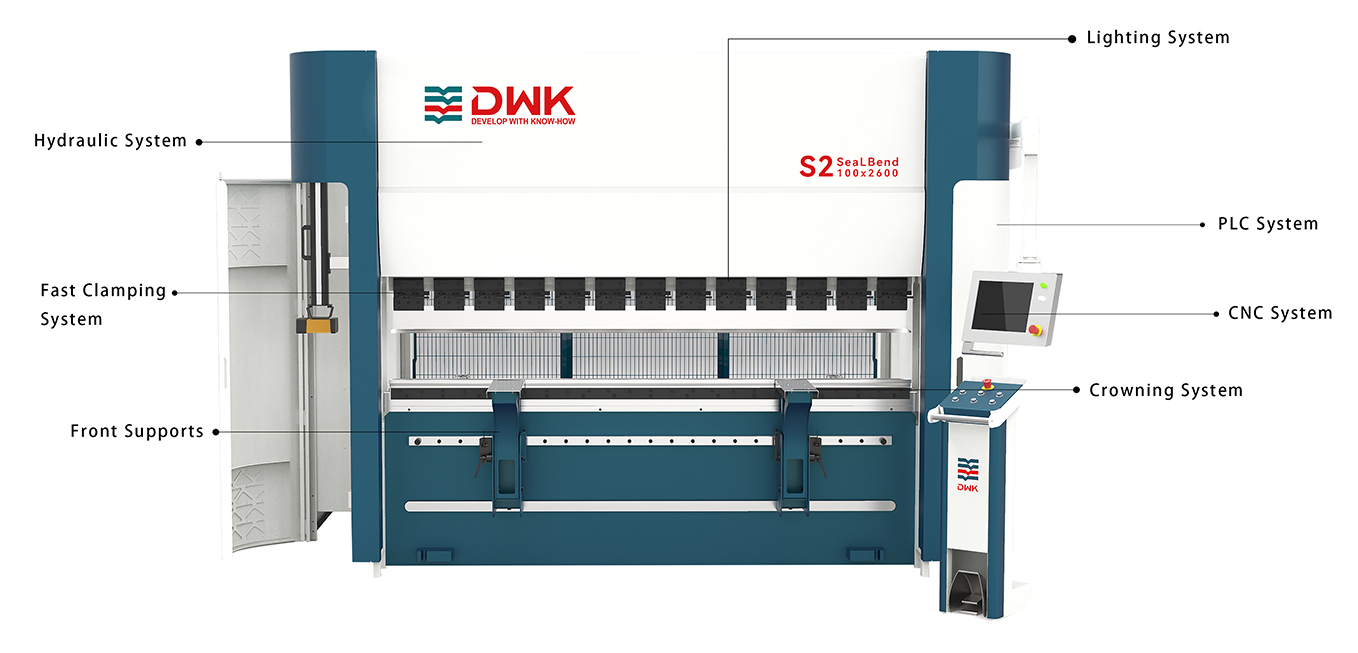

The S2 100-2600’s closed-frame design is forged from thick, high-strength steel, providing superior structural stability and extreme rigidity. This engineered architecture eliminates flexing during heavy bending tasks (for example, when processing 10mm-thick steel sheets), ensuring every workpiece meets exact angle requirements with a strict tolerance of ±0.1°. Operators will notice the complete absence of chassis resonance during the downward stroke.
Generating a 1000kN nominal force, this system enables the precise bending of materials ranging from thin aluminum (1mm) to thick steel (12mm). The 2600mm bending length accommodates wide sheets (such as 2.5m metal panels for home appliances). To guarantee long-term reliability, the machine integrates electrical and hydraulic components from internationally recognized brands like Siemens, Schneider, and Bosch Rexroth. This configuration maintains smooth pressure control to prevent material cracking—even for brittle metals like stainless steel—while ensuring replacement parts are easily accessible globally.
Equipped with a 150mm/s fast-down speed for rapid workpiece positioning and a 12mm/s working speed, the S2 100-2600 actively cuts production cycle times by up to 40% compared to standard alternatives. This rapid cycle capability proves highly advantageous for high-volume production lines, including automotive chassis component manufacturing, where output speed directly impacts facility profitability.

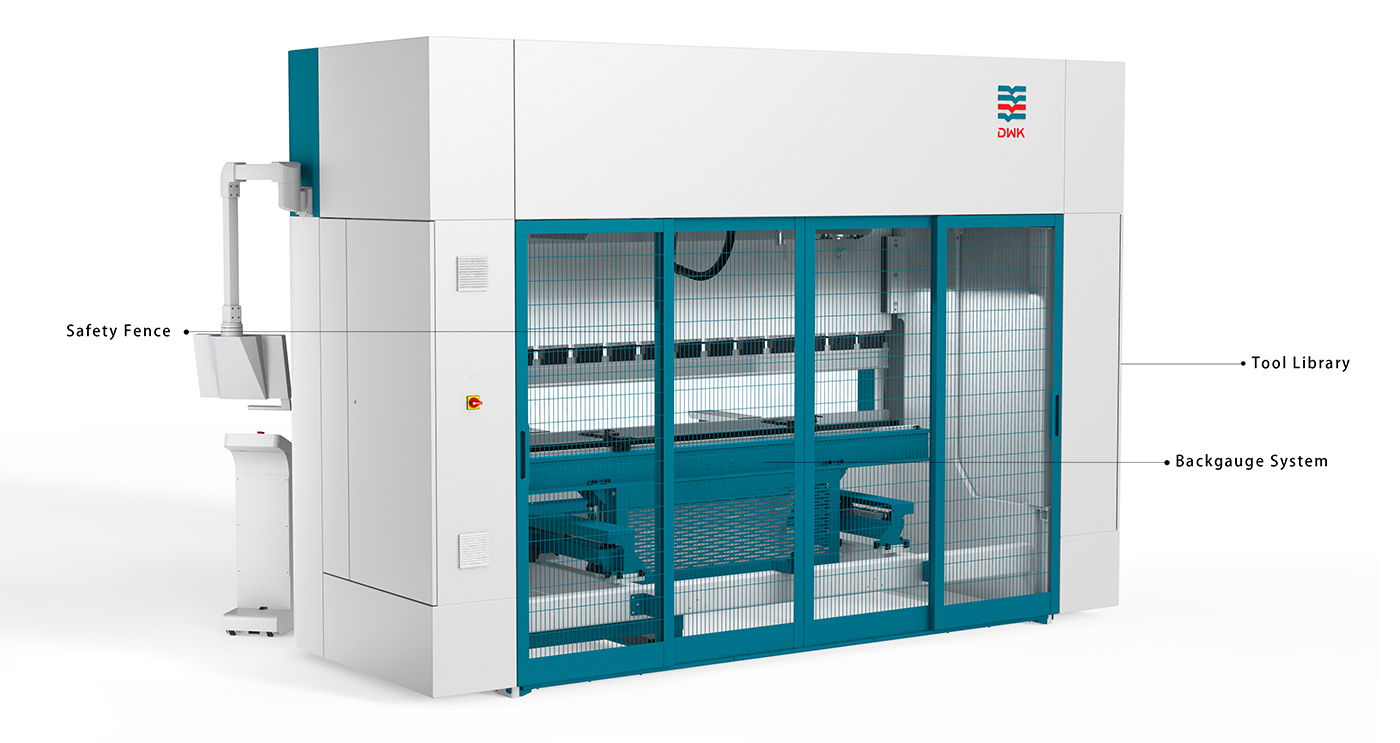

The integrated CNC system and PLC system simplify daily operations through an intuitive, industrial-grade touchscreen interface. Operators can store up to 100 custom bending programs for different panel shapes and access a comprehensive built-in tool library to switch dies quickly. The automated backgauge system adjusts instantly to workpiece dimensions, significantly reducing manual setup time and eliminating human measurement errors.
To maximize operational uptime, the machine features a fast-clamping tooling system paired with intelligent mechanical or hydraulic crowning compensation. This setup drastically shortens tool changeover times while guaranteeing absolute angle consistency across the entire 2600mm bending span, completely eliminating the need for manual shimming.
Utilizing optimized servo-hydraulic control technology, the press brake significantly lowers power consumption during standby and active operation. Beyond saving electricity, this system reduces factory floor noise pollution—replacing the constant drone of traditional pumps with a quiet hum only active during the bending stroke—supporting green manufacturing initiatives.
Understanding that every production line faces unique challenges, this model supports extensive physical customization. Buyers can specify the exact number of backgauge axes required (such as X, R, Z1, Z2 configurations), as well as custom throat depths and daylight opening heights to accommodate highly complex or irregular workpiece profiles.
Equipped with a protective safety fence and easily accessible emergency stop buttons, the equipment meets strict global safety standards. The massive 7100kg heavy-duty frame resists mechanical wear from continuous, high-load use, delivering a reliable service life exceeding 10 years when properly maintained.
The S2 100-2600 acts as a foundational asset for general sheet metal bending tasks, efficiently forming stainless steel sheets into complex HVAC ducts or protective metal enclosures. Its expansive bending length easily handles wide, continuous panels without requiring multiple passes, ensuring a smooth surface finish.
Widely deployed to bend rigid car body frames, thick chassis parts, and specialized exhaust system brackets. The precise CNC control ensures consistent angles across hundreds of identical components, which is an absolute necessity for strict assembly-line compatibility and vehicle safety.
Produces exactingly dimensioned metal enclosures for commercial switches, power transformers, and industrial control panels. The machine’s high precision ensures that the formed enclosures fit perfectly with internal electronic components, entirely avoiding gaps, misalignments, or ingress vulnerabilities.
Capable of bending thick steel plates into heavy-duty structural components like crane arms or excavator buckets. The substantial 1000kN force effortlessly handles these heavy materials, while the closed-frame design maintains strict dimensional accuracy even under maximum load conditions.
Forms sleek, uniform appliance casings for consumer refrigerators, washing machines, and ovens. The high-speed bending capabilities directly reduce production lead times, helping large-scale appliance manufacturers meet sudden seasonal demand spikes without compromising on exterior aesthetic quality.
DWK’s rigorous quality management ensures the S2 100-2600 delivers reliable, repeatable performance straight out of the crate:
Hydraulic system testing: Each machine undergoes a demanding 24-hour pressure cycling process to check for microscopic leaks or pressure drops, ensuring completely stable force output during actual operation.
CNC accuracy calibration: Using highly sensitive laser measuring tools, factory technicians verify the bending angle tolerance (±0.1°) and backgauge positioning accuracy (±0.05mm) before any unit is approved for shipment.
Material compatibility checks: The press brake is physically tested with 5+ common industrial materials (including various grades of steel, aluminum, and copper) to confirm consistent, flawless results across diverse applications.
Durability validation: A grueling 100-hour continuous operation test simulates heavy, multi-shift production use, ensuring the steel frame and hydraulic components resist mechanical fatigue.
International Safety Certifications: The equipment proudly carries CE and ISO certifications, confirming full compliance with stringent global factory safety regulations and ensuring frictionless import customs clearance for international buyers.
It handles up to 12mm-thick carbon steel and 8mm-thick stainless steel, depending on the specific material hardness and yield strength. Thinner materials, such as 1–3mm aluminum, can be processed at significantly higher speeds to maximize daily production efficiency.
Yes. The highly intuitive CNC system allows operators to easily create, store, and recall custom bending programs for complex U-bends or multi-angle structural parts. It also fully supports importing CAD files directly into the interface for precise, automatic parameter setting.
The S2 100-2600 features physical dimensions of 3765×1690×2700mm. For safe and unhindered operation, we strongly recommend maintaining a 5m×3m clearance area around the machine to comfortably accommodate workpiece loading, material handling equipment, and operator movement.
To protect your investment, we utilize industrial-grade vacuum rust-proof and moisture-proof packaging. The 7100kg machine is then secured using professional heavy-machinery container reinforcement techniques, guaranteeing absolute safety and structural integrity during long-distance trans-oceanic shipping.
We offer a comprehensive support ecosystem that includes optional overseas installation and commissioning, detailed operator training, and lifetime remote technical guidance. Furthermore, our rapid-response spare parts supply chain ensures that replacement components reach your facility swiftly, minimizing any potential downtime.
