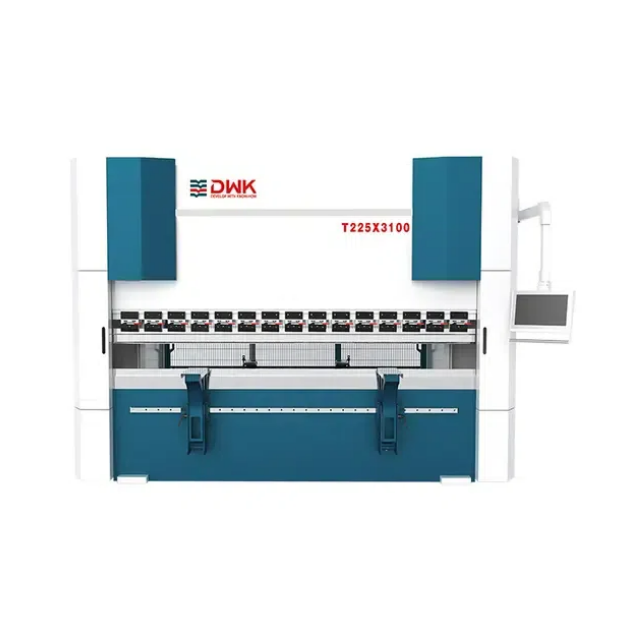

How To Choose The Right Hydraulic Press Brake for Your Workshop

When it comes to bending sheet metal in your workshop, choosing the right hydraulic press brake is crucial to optimizing your production capabilities. Whether you're working with steel, stainless steel, or aluminum, finding the machine that suits your material, part size, and precision requirements is key to achieving high-quality bends. In this guide, we’ll walk you through the factors you need to consider before purchasing a hydraulic press brake and how to match your production needs to the perfect machine.

What Production Requirements Define the Right Press Brake?

The first step in selecting the ideal hydraulic press brake is understanding your workshop’s production needs. This will help determine the specifications of the machine you need, such as material types, thickness, bend length, and the level of accuracy required.

Material Types & Max Thickness

One of the most critical considerations when choosing a hydraulic press brake is the type of materials you plan to bend and their thickness. If you're primarily working with steel, you’ll need a machine with higher tonnage and a more robust frame to handle the weight and strength of the material. For softer metals like aluminum, the requirements might be less stringent, but you’ll still need a machine that can handle varying thicknesses.

It’s important to choose a machine that can accommodate your material’s maximum thickness to ensure the press brake can handle your workload. Hydraulic press brakes come in a variety of tonnages, with some machines able to bend up to 20mm thick steel, while others are designed for thinner materials like aluminum and stainless steel.

Minimum/Maximum Bend Length and Part Size

Another essential factor is the maximum bend length and part size your press brake can handle. This is especially important for manufacturers working with large parts or intricate designs. If your shop regularly handles larger metal sheets or long parts, you’ll need a press brake with a longer bed length and greater capacity for larger sheets.

Conversely, if your shop focuses on smaller parts, you'll need a machine that offers precision and the ability to handle these small, intricate bends. Evaluating the size of your typical parts and their bend length will help narrow down your choices.

Required Accuracy, Repeatability, and Batch Volume

Lastly, consider the required level of accuracy and repeatability for your parts. If your production requires tight tolerances and consistency across multiple batches, a hydraulic press brake with precise control and repeatability is essential. CNC-controlled press brakes offer excellent repeatability, ensuring that every bend is made with the same level of accuracy, regardless of the batch size.

For high-volume production, you might prioritize a press brake that delivers both speed and consistency. However, if you're working on custom, low-volume projects, a manual or hybrid machine might be more appropriate, offering a balance between cost and performance.

Types & Basic Architectures of Hydraulic Press Brakes

Understanding the different types and architectures of hydraulic press brakes is essential when choosing the right one for your workshop. The configuration of the machine affects its performance, flexibility, and price.

Conventional Hydraulic vs. Hybrid Options

The two most common hydraulic press brake types are conventional hydraulic and hybrid models. Conventional hydraulic machines use a single pump and cylinder to generate force, making them reliable and simple to maintain. These machines are typically more affordable and suitable for smaller shops or businesses with basic production needs.

Hybrid models, on the other hand, combine traditional hydraulic systems with electrical or servo-assisted controls. These machines are energy-efficient, offering improved accuracy and faster response times, which can significantly increase throughput and productivity. Hybrid press brakes are often preferred in high-volume production environments where energy savings and speed are crucial.

Frame Styles: C-Frame vs. H-Frame

The frame style of a hydraulic press brake influences its rigidity and bending capacity. C-frame press brakes are the most common design, offering ease of access and visibility, making them ideal for smaller parts and simpler bending tasks. However, they may have limitations when it comes to handling very heavy or large materials.

H-frame press brakes, by contrast, offer greater stability and rigidity, making them better suited for larger, heavier parts. These machines are often used in high-production environments or for bending thick, high-strength materials. The H-frame design is also less prone to deflection, ensuring more accurate bends under higher pressure.

CNC vs. Manual Controls

Control systems also play a significant role in the functionality of a hydraulic press brake. CNC (Computer Numerical Control) press brakes provide automated control over the bending process, allowing for high precision, complex bends, and easy programming. CNC models are essential for workshops that require high levels of automation and consistency across multiple parts.

On the other hand, manual press brakes are ideal for workshops where operators are familiar with the bending process and need flexibility. Manual controls are typically less expensive, making them a great option for businesses with lower production volumes or budget constraints.

Key Specs to Compare: Tonnage, Stroke, Daylight, and Bed Length

When selecting a hydraulic press brake, understanding the key specifications is vital for ensuring the machine meets your production needs.

How to Translate Part Thickness & Length into Tonnage Needs

Tonnage is the amount of force required to bend a sheet of metal. The thickness of the material you’re working with directly impacts the tonnage required. For instance, thicker steel requires higher tonnage to produce the desired bend. To ensure you have the correct tonnage, you need to calculate the maximum thickness and length of your parts, as well as the material’s hardness.

A general rule is to use 1 ton of pressure per millimeter of material thickness. However, it’s essential to consult with manufacturers to ensure the machine you choose can handle your materials within your production specifications.

Stroke & Ram Speed Trade-offs for Throughput vs. Control

The stroke refers to the vertical distance the ram moves during a bending cycle. A longer stroke allows for greater flexibility in handling thicker or larger parts, but it can reduce speed and throughput. For high-speed production, you’ll want a machine with a fast ram speed to maximize efficiency. However, for precision bending, a slower stroke and controlled ram speed may be more important to maintain accuracy.

Tooling, Automation & Control Features to Prioritize

In addition to the machine’s basic specifications, there are several features that can enhance your hydraulic press brake’s efficiency and ease of use.

Backgauges, CNC Controllers, and Crowning Systems

Backgauges are an essential feature that helps to position parts accurately and improve repeatability. A CNC-controlled backgauge allows for automated adjustments, ensuring each part is bent consistently. Crowning systems help to compensate for any deflection that may occur in the machine's frame during the bending process, ensuring even bends across the entire length of the material.

Tool Quick-change, Segmented Dies, and Safety Systems

Quick-change tooling systems can save a lot of time during job changes, improving overall efficiency. Segmented dies allow for precise control over the bending process, making it easier to bend materials of varying thicknesses and sizes. Safety systems such as light curtains, two-hand operation, and emergency stops are crucial for ensuring safe operation, reducing the risk of accidents in the workshop.

Cost Drivers & Lifecycle Considerations

The cost of a hydraulic press brake isn’t limited to its initial purchase price. Understanding the total cost of ownership is essential for making an informed decision.

Upfront Price vs. Operating Costs

While conventional hydraulic press brakes may have a lower upfront cost, they may incur higher operating costs due to energy consumption and maintenance. Hybrid press brakes, while more expensive initially, are more energy-efficient and require less frequent maintenance, making them a better long-term investment.

Spare Parts, Local Service, and Resale Value

Finally, consider the availability of spare parts and the quality of local service for the machine. Machines from well-established brands often have a higher resale value, ensuring that you can recover some of your investment if you decide to upgrade in the future.

Conclusion

Choosing the right hydraulic press brake for your workshop involves understanding your production needs, selecting the appropriate specifications, and considering the long-term costs. Whether you’re working with high-strength steel or delicate aluminum, DWK Machine Tool (Tianjin) Co., Ltd. offers a wide range of hydraulic press brakes tailored to meet your specific requirements. For more information or to request a quote, please feel free to contact us today.
