The Role of CNC Bending Equipment in Smart Manufacturing And Industry 4.0

As manufacturers embrace Industry 4.0, a fundamental shift is underway: production equipment is no longer valued solely for its mechanical prowess, but also for the data it generates. In this new paradigm, data is the lifeblood of continuous improvement, predictive maintenance, and agile decision-making. CNC bending equipment—long prized for accuracy and repeatability—has emerged as a critical node in smart factories. By outfitting press brakes with force, angle, and position sensors, and integrating them into real-time monitoring and enterprise systems, manufacturers unlock insights that translate into higher first-pass quality, reduced downtime, and leaner operations.

1. Data Acquisition Modules on CNC Bending Equipment

At the heart of Smart Manufacturing lies comprehensive data capture. Modern CNC press brakes are equipped with an array of sensors and embedded electronics to record critical process parameters on each bend:

• Force Sensors (Load Cells): Mounted on hydraulic cylinders or ram assemblies, load cells measure the actual bending force applied in real time. This data reveals variations in material yield strength, hydraulic performance, or tooling wear.

• Angle Encoders (Ram Angle & Back-Gauge Position): High-resolution rotary or linear encoders track the exact position and angular displacement of the ram and back-gauge axes. Accurate angle measurement is crucial for consistent bend geometry and springback compensation.

• Travel Sensors (Displacement Transducers): Linear transducers monitor the ram stroke length, confirming that the machine reaches programmed depth for each bend. Deviations can flag hydraulic system leaks or mechanical backlash.

• Environmental & Auxiliary Sensors: Temperature probes, hydraulic oil pressure sensors, and vibration monitors contribute context for interpreting bending data—such as detecting pump inefficiencies or misalignment before they impact product quality.

These hardware modules continuously feed raw data into the machine's CNC controller. By sampling at millisecond intervals, the press brake creates a detailed time-series record of each bend cycle, capturing the dynamic interplay between operator inputs, machine behavior, and material response.

2. Real-Time Monitoring and Quality Traceability

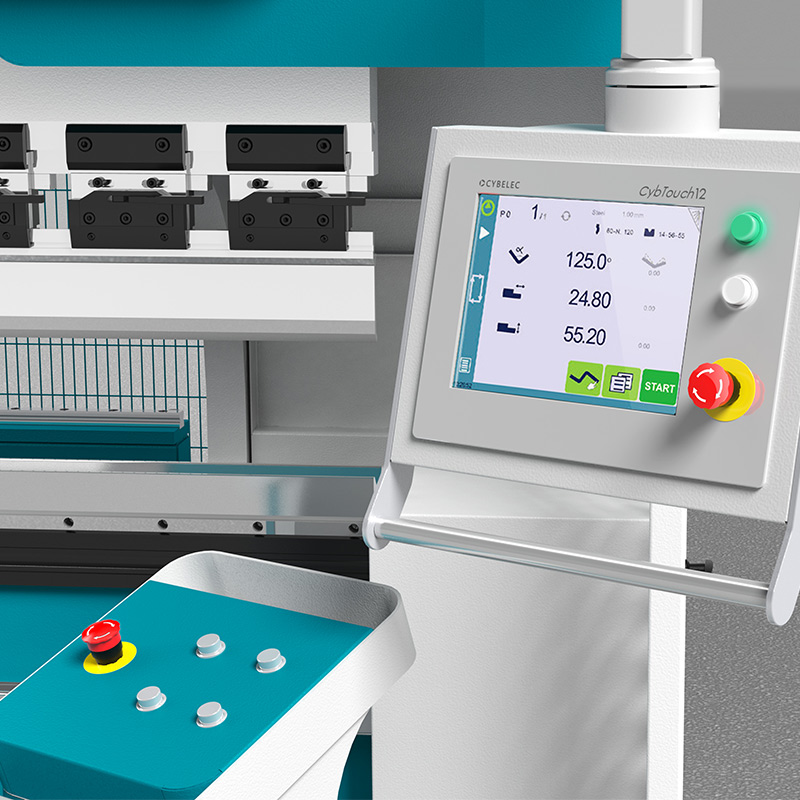

Continuous data acquisition only delivers value when paired with real-time analytics and visualization. Integrated monitoring software—either embedded in the CNC or running on a shop-floor HMI—provides operators and engineers with actionable insights:

• Process Dashboards: Live displays show current bending force curves, angle versus time plots, and back-gauge movements. Operators can immediately identify anomalies such as unexpected force spikes (indicative of tool collision or material obstruction) or angle drift (signifying springback variation).

• Alerting & Thresholds: Users define acceptable ranges for key parameters. If forces exceed specified limits or angles fall outside tolerance bands, the system triggers visual or audible alarms, prompting a pause in production and inspection before scrap accumulates.

• Batch Reports & Traceability: Each part or batch is assigned a unique ID in the CNC program. Upon completion, the controller archives the bend data—force curves, angle logs, material lot number, and operator ID—to a database. When a field issue arises, quality engineers can trace back to exact process conditions, facilitating root-cause analysis and corrective action.

• Statistical Process Control (SPC): By aggregating data over multiple runs, the system computes metrics such as mean bend angle, standard deviation, and Cp/Cpk capability indices. This ongoing SPC capability helps manufacturers detect process drift over time and implement adjustments before parts fall out of spec.

By transforming raw sensor outputs into intuitive dashboards and automated reports, CNC bending equipment becomes a self-monitoring asset that ensures each bend meets quality standards and that any deviation is immediately visible.

3. Integration with MES/ERP for Closed-Loop Feedback

Smart factories thrive on connectivity. To close the loop between planning, execution, and continuous improvement, CNC bending machines interoperate with Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) platforms via industry-standard protocols (e.g., OPC UA, MTConnect):

• Job Scheduling & Dispatch: The ERP or MES assigns work orders to specific press brakes, sending CNC programs and material identifiers directly to the machine. This reduces manual setup errors and enforces production priorities.

• Material Traceability: When a coil or sheet bundle is loaded, barcode or RFID scanning logs material lot numbers into the MES. That lot number travels with the part throughout bending, enabling end-to-end traceability for quality certifications or regulatory compliance.

• Performance Data Exchange: Upon each job's completion, the CNC controller uploads OEE (Overall Equipment Effectiveness) metrics—availability, performance, and quality—to the MES. Operations managers gain a unified view of machine utilization, cycle times, and scrap rates across the entire shop floor.

• Closed-Loop Process Optimization: MES aggregates shop-floor data and applies analytics or AI-driven algorithms to recommend updated bend parameters, preventive maintenance schedules, or tooling upgrades. These recommendations are fed back to the CNC, which updates recipes automatically, creating a continuous improvement cycle without manual intervention.

By closing the digital feedback loop, CNC bending equipment becomes an active participant in broader enterprise workflows, ensuring that data drives strategic decisions—from order fulfillment to asset maintenance.

4. Case Study: Leveraging Data to Boost First-Pass Yield and Equipment Utilization

• Background: A Tier 1 automotive supplier operates four CNC press brakes across two shifts, fabricating drivetrain brackets from 2 mm stainless steel sheets. Historically, first-pass yield hovered around 85%, and unplanned downtime averaged 6 hours per week due to tool wear, springback inconsistency, and hydraulic leaks.

• Smart Upgrade: The plant retrofitted the press brakes with force load cells, angle encoders, and back-gauge position transducers. The existing CNC controls were upgraded to support real-time SPC and OPC UA connectivity to the MES.

• Implementation Steps:

• Sensor Calibration & Baseline Mapping: Technical teams ran calibration bends, mapping force and angle curves for “golden parts.” These baselines served as reference models for live SPC monitoring.

• Threshold Configuration & Alerts: SPC control limits were set at ±0.5° for bend angles and ±5% for force deviations. Any exceedance paused the press brake automatically and flagged an operator review.

• MES Integration: Work orders now arrive automatically, complete with CNC programs and material lot IDs. At job completion, CNC logs of actual bend curves and cycle times upload to the MES.

• Continuous Analysis: Weekly review meetings leveraged MES dashboards to identify persistent drift in cylinder efficiency, prompting a preventive hydraulic seal replacement before performance degraded further.

• Results (Six Months Post-Upgrade):

• First-Pass Yield: Increased from 85% to 97%, reducing scrap and rework costs by 60%.

• Unplanned Downtime: Dropped from 6 to 1.5 hours per week, boosting machine availability from 90% to 97%.

• Cycle Time Reduction: Real-time SPC flagged over-force events and springback drift, enabling immediate parameter tweaks. Average bend cycle shortened by 12%, improving throughput.

• Maintenance Efficiency: Predictive alerts for hydraulic seal wear allowed scheduled downtime during off-peak hours, reducing maintenance labor costs by 30%.

• Key Takeaway: Data-driven monitoring and enterprise integration transformed under-utilized assets into high-performing, self-optimizing machines, delivering rapid ROI and aligning bending operations with Industry 4.0 best practices.

Conclusion

CNC bending equipment has evolved far beyond a mere sheet bending tool. By embracing data acquisition modules, real-time monitoring, and seamless MES/ERP integration, hydraulic and electric press brakes become intelligent assets that drive quality, productivity, and continuous improvement. In an era where “data is the new oil,” embedding sensors and connectivity into bending machines is no longer optional—it is essential to stay competitive in smart manufacturing and Industry 4.0.

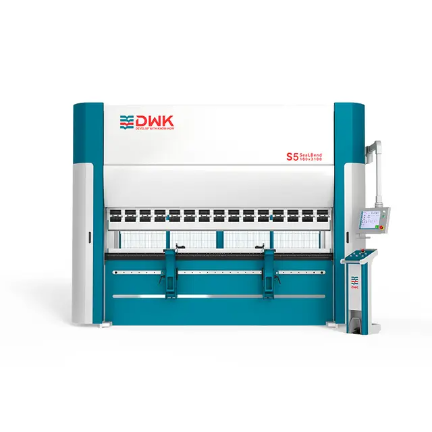

For manufacturers ready to elevate their sheet metal operations, DWK Machine Tool (Tianjin) Co., Ltd. offers a comprehensive lineup of CNC bending solutions, complete with sensor packages, advanced controls, and turnkey integration services. Visit www.dwkmachine.com or contact DWK's technical experts to discover how their smart bending equipment can become a data-driven engine for your next generation factory.
